Saturday, July 25, 2009

TxdsControlsStates V1.1

TxdsControlsStates is Delphi Component to store states of controls and components on your form to recall later during run-time.

TxdsControlsStates allows you to eliminate that series of assignments and replace it with single method call to


The set of Component Properties and States are defined during design-time in property editor.

Download here

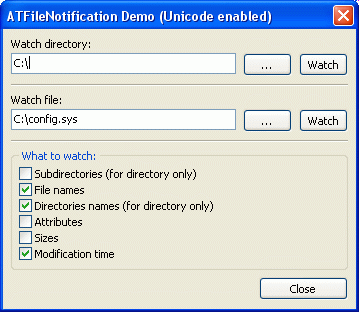

ATFileNotification V1.1.4

ATFileNotification is a non-visual component, which allows to watch for files/directories changes and to fire an event when change occurs.
It is improved version of fisFileNotification component. Improvements are:

Component made Unicode compatible
FileName property added: you can watch for changes in a single file
Attempt to make component thread-safe (need feedback about it)

AutoCorrect Components v1.0

What does the code do exactly?

Implements for TCustomEdit and TCustomCombo descendents a large sub-set of the AutoCorrect functionality had by ‘proper’ word processors. Specifically, the following is implemented:

User-defined ‘replace text as you type’ entries, including formatted ones if the active control is a rich edit.
TWo INitial CApitals correction, with an exception list that is automatically added to when the user immediately undoes a correction.
Conversion of ’straight’ quotes into ‘curly’ (‘smart’) quotes.
Conversion of hyphens to dashes: two hyphens in a row (–) turn into an em-dash, a hyphen with a space either side ( – ) becomes an en-dash with a space either side.
Conversion of 1/2 to ½, 1/4 to ¼, and 3/4 to ¾.
Auto-indentation for rich edit controls — in other words, allows the user to set the active paragraph’s left- and first-indent properties by tabbing and backspacing.
How does it work?

In essence, the code works by trapping the KeyPress method (OnKeyPress event) of the active control, testing for a trigger key that will lead to correction testing proper kicking in. The initial trapping, however, is ‘manual’ in the sense that the TAutoCorrectEngine component does not actively ‘seek out’ key press events — it needs to be told about them.

What’s the quickest way to see it in action?

Download the code from here (EDN registration required — it’s free and relatively easy to do though), open up the ‘AutoCorrect demo and design-time package’ project group, and run the last project listed (AutoCorrectDemo.dpr). Since the TAutoCorrectEngine component is created at runtime for the demo, no installation is required.

How do I use the code myself?

Firstly, compile and install the design-time package, dclCCRAutoCorrect.dpk. This should lead to five new components being added to the component palette: TAutoCorrectEngine, TComboBoxWithAutoCorrect, TEditWithAutoCorrect, TMemoWithAutoCorrect and TRichEditWithAutoCorrect.
Ensure CCR.AutoCorrect.dcu and CCR.AutoCorrect.Consts.dcu end up somewhere in your library paths — the easiest way to do this is to add the component’s directory as a library path itself. In Delphi 2007, you do this by going to ToolsOptions, Environment Options -> Delphi Options -> Library – Win32, and clicking on the ellipsis button for ‘Library path’.
Create a new VCL forms application and add a TAutoCorrectEngine component to the main form; double click the component to add some custom ‘replace-as-you-type’ entries.
Add one or more TxxxWithAutoCorrect controls to the form, and assign their AutoCorrectEngine property to the TAutoCorrectEngine component.
Compile and run.
But I don’t want to use your custom descendants of TEdit, TRichEdit, etc.!

No problem — you’ll just have to do a bit of manual work, calling as appropriate the KeyDownOccurred, KeyPressOccurred and UndoOccurred methods of the TAutoCorrectEngine component. The last of these is best done by defining an undo action (i.e., a TAction with Ctrl+Z as its shortcut), UndoOccurred being called immediately after the undo operation is performed. As for the other two, you can either handle the OnKeyXXX events of the controls themselves or (if you set KeyPreview to True) the parent form — in the second case, pass ActiveControl as the first parameter to KeyXXXOccurred. See the main demo for an example of all this — the process is simpler than it may sound.

The small print

Target Delphi versions: separate versions for Delphi 7 on the one hand, and Delphi 2006 or greater on the other, are included in the ZIP — both versions’ functionality and implementation are almost identical however.

Turbo Delphi Explorer compatibility: since you don’t need to install TAutoCorrectEngine to actually use it, and adding custom entries at runtime is pretty easy. Check out the main demo, which doesn’t use a design-time instance of the component and so can be open and run from inside the Turbo Delphi IDE.

Rich edit bugs: note that the TRichEditWithAutoCorrect class works around bugs in the underlying DLL the VCL’s TCustomRichEdit wraps. Specifically, v1 of the DLL (used until Delphi 2009) uncurls smart quotes when they are streamed or pasted in, and v1 to v3 of the DLL don’t load en- and em-dashes correctly, loading them as hyphens.
